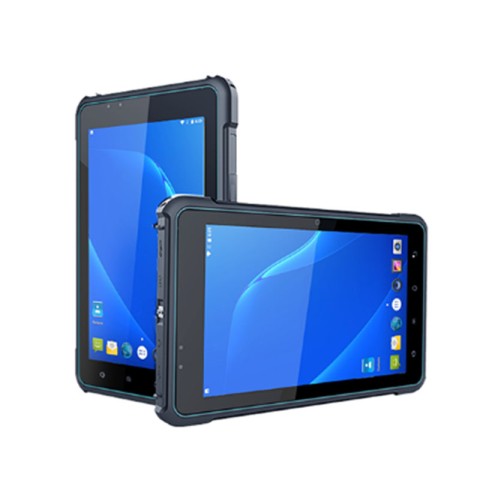

Handheld-Wireless NB801 – an 8-inch All-in-one android handheld tablet, IP67 waterproof and dustproof,GMS passed,features special industrial data capture fuctions include UHF RFID, barcode scanning, HF RFID/NFC, fingerprint recognition, wireless data communication, widely applied in industrial automation management, fleet management, asset management,and inventory & logistics management and so on.
| PHYSICAL CHARACTERISTICS | |
| Dimension | 230mm(H)x142mm(W)x18mm(D)±2 mm |
| Weight | Net Weight :600g(including battery&wrist strap) |
| Display | Tough 8.0 in. TFT-LCD(800×1280)touch screen with backlight |
| Backlight | LED backlight |
| Expansions | 2 PSAM, 1 SIM, 1 TF， |
| Battery | Rechargeable li-ion polymer, 3.8V,8000mAh |
| USER ENVIRONMENT | |
| Operating Temp | -20℃ to 50℃ |
| Storage Temp | -20℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range |
| Sealing | IP67, IEC compliance |
| ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | |
| CPUCPU | Quad A53 1.5GHz octa-core |
| Operating System | Android 7.0 |
| Storage | 2GB RAM /16GB ROM or 3GB RAM/32GB ROM, MicroSD(max 256GB expansion) |
| Camera | Rear 13 megapixel, front 5.0 megapixel |
| FINGERPRINT READER (OPTIONAL) | |
| Sensor | TCS1 |
| Sensor type | Capacitive, area sensor |
| Resolution | 508 DPI |
| Performance | FRR |
| Capacity | 1000 |
| DATA COMMUNICATION | |
| WWAN | 4G:TDD-LTE Band 38, 39, 40, 41; FDD-LTEBand 1, 2, 3, 4, 5,7,8,12, 17, 20; 3G:WCDM(850/1900/2100MHz); 2G:GSM/GPRS/Edge(850/900/1800/1900MHz); |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| BARCODE READER(OPTIONAL) | |
| 2D Imager Scanner | Honeywell N6603/Newland NLS CM60 etc. |
| Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| UHF RFID(OPTIONAL) | |
| Frequency | 865~868MHz/920~925MHz/902-928MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C |
| Antenna Gain | Circular antenna(2dBi) |
| R/W Range | 1.5-2m(depend on tags and environment) |
| HF/NFC(OPTIONAL) | |
| Frequency | 13.56MHz |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| R/W Range | 2cm to 8cm |
| LF RFID (OPTIONAL) | |
| Frequency | 125KHz/134.2KHz(FDX-B/HDX) |
| Protocol | ISO 11784&11785 |
| R/W Range | 2cm to 10cm |
| PSAM SECURITY (OPTIONAL) | |
| Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000,57600, 115200 |
| Slot | 2 slots(maximum) |
Application
In order to help improve the production and operation efficiency of all walks of life, reduce unnecessary costs, and strengthen intelligent management, We adopt industrial RFID tablet intergrate rich data collection function and enterprise owned software to help enterprises in visual and transparent management,and keep tracking, the device can be widely in varous field and industries, whatever in industrial production line or modern asset management.
