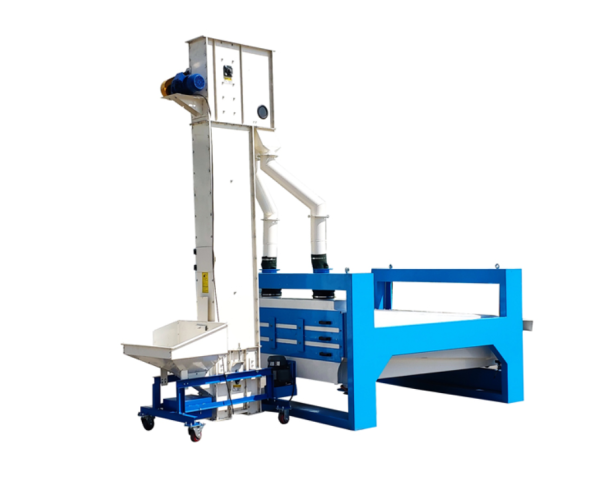

Grain Bean Plane Rotary Cleaner Grader
Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from different outlets.The air aspiration system is optional, dust and light impurity can be removed by aspirator fan and collected by cyclone dust separator.
FEATURES1. Suitable for medium and small capacity processing lines2. Dual screen decks for flexible processes3. Reliable screen deck compressing and locking mechanism4. FRP sticks suspension structure for easy adjustment of process parameters5. Heavy duty structure for durability and reliability6.Combined material flow routes to accomplish circle, oval and straight movement for high productivity7. Large sight glass for easy observation of processing status8. Laser cutting applies to sheet metal components for quality and accuracy9. Carbon dioxide gas shielded welding workmanship10. CNC machining centres ensure precise fabrication11. Powder coated parts and components for best quality and duration
Technical Parameter
| Model | 5XZR-100/200D | 5XZR-125/200T | 5XZR-150/200Q | 5XZR-150/200DD |
| Capacity(t/h) | 6-9 | 7.5-10 | 11-15 | 15-20 |
| Screen Layers | 2 | 3 | 4 | 2 and 2 |
| Screen Width | 1000 mm | 125 mm | 1500 mm | 1500 mm |
| Screen Length | 2000 mm | 2000 mm | 2000 mm | 2000 mm |
| Power (kW) | 1.1 | 1.5 | 2.2 | 2.2 |
| Weight (kg) | 700 | 900 | 1200 | 1250 |
| Size (L*W*H mm) | 2500*1600*1200 | 2500*1850*1350 | 2500*2100*1500 | 2500*2100*1550 |
